Piping - Design & Drawings

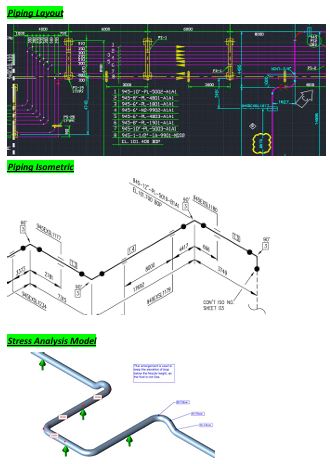

Deliverables - Plot plan, Layouts, Isometrics, MTO, BOQ, Critical Line list, Data sheet of valves & Special piping items, Stress analysis reports, 3D Modelling…etc.

"

• Piping– Process interface for
  1. P&ID to prepare Piping layouts
  2. Line list to prepare Critical line list and to perform stress analysis
  3. Valves and Piping special items Process Data to prepare data sheet and RFQ (Request for quotation)
• Piping - Mechanical Interface
  1. Nozzle orientation on vessels and storage tanks in line with piping layout
  2. Comparing Nozzle allowable loads on equipment in line with stress analysis result
  3. Deciding number, location and orientation of Platform Ladders on equipment in accordance with maintenance and operability requirement
• Piping – Civil Interface
  1. Loading data on Concrete and Structural members like Pipe racks, Sleepers as a result of stress analysis
  2. Culvert design by civil in accordance with pipe size and rout
  3. Clash check between Piping and Civil services like storm drain, sewer network, oily water network
• Piping – HSE Interface
  1. Equipment safety distance while deciding equipment location on Plot plan
  2. Number and location of fire extinguishers, hydrants, monitors
• Piping – Instrumentation & Control
  1. Preparation of “Instrument location Plan” based on coordinates and elevation of instruments in Piping Layouts
  2. Preparation of “Instrument Hook up” drawings indicating battery limit between Piping and I&C
• Piping – Electrical Interface
  1. Development of “Electrical Hazardous Layout” based on leakage points in piping network in accordance with Piping Layouts
• Clash check between Piping and Electrical services like cable tray and trenches
